67ft Long Range Ocean Explorer Cat

HULL, DECK & SUPERSTRUCTURE MAIN Specs:

Boat Layout Plans available upon request via email

enquiry to salesglobal@finishlineboats.com

• GRP (Infused) Construction (high tech)

• Colours: white and deep blue or aqua.

• Built to ISO 9000 Small Craft International Standards

• Catamaran “sleek” designs: with our wave breaking centre fin hull design  standard, front beach landing ladders, rear access automatic push button lowering swim platforms

• Rear opening back of the boat area access roof where the Solar panels are opens full beam when at anchor to create a shade area and to open up the rear areas for outdoor dining.

• For fender placement, 6 lift fender cleats per side.

• Inboard Volvo D13 (735 kW/1000 hp) shaft drive units x 2 being fed by twin high pressure Jasco pumps, Integrated engine flushing at the touch of a button,

• Added Hybrid Wind Propulsion upgrade is available (no sail required to 14 knots speeds and zero gasoline used )-Upgrade cost $390,000 usd

• Length overall 20.5m (67ft)

• Beam overall 11m

• Draft (Light ship) 1.4m (4.94ft)

• Headroom – Main areas, cabins 2.4m (7.89ft)

• Fuel tank capacity- Gasoline version only 6,200L

• Fuel, long range reserve tanks Gasoline version only 9,950L

• Water Capacity 2 X 660L

• Holding tanks Capacity 2 x 350L

• Top speed 22-23 knots

• General cruise speed half load 11 knots

• Range at cruise speed Half Load 12 knots Gasoline version only 3000Nm (Approx.)

• Range at cruise speed 14 knots-UPRADE WIND PROPULSION VERSION -10,000 NTM

• Bow Thruster Standard x 2

Layouts

• Forward Full beam Master with Ensuite/king size bed/plenty of storage/TV/ Bar

• 4 ViP Suites all with ensuites/large bed size areas with plenty of storage needs

• 1 x standard room for all your desk & office needs

Kitchen

• Meile Applicances

• Open benches surround your everday cooking experience

• Double door Meile fridges x 3

• Dishwasher x 1

• Double bowl sink x 2

• Plenty of storage

• Microwave x1

• Induction Cooktop 6 burner type

Bathrooms x 4 / 2x day heads:

• Shower/toilet/Large basin/cabinetry all made with high end lightweight materials modern contemporary style

Power:

• 240v power points (2), 12-volt charge usb points (6), Electronics:
  2 x 6000w amps. All Fusion. Sionyx Night vision camera, 1100 watt solar panels, DC to DC chargers, 130x 50-amp solar controllers. 10,000-watt inverter. All Victron gear. 3 x 10000 btu Wesbesco air conditions, 2 x 50” Samsung tv lowering type. 5 x wireless phone chargers. Under furniture and overhead RGB lighting. 34 down lights, front and rear flood lighting. All digital switching.

Fire suppression:

• Hand extinguishers (6), all safety equipment required including life jackets to suit boat capacity, with all safety needs to get you on the water and safe.

High tech helm area

• All monitored within cloud abilities to our factory project managers ensuring your boat is protected/ secure / monitored mechanically and technology wise to a double redundancy  feature with 2 x SIMRAD NSO 24” Display, 1 x Open Array Halo 3004 Radar,1 x Bronze Thruhull Transducer B175 Airmar, 2 x VHF RS40B with AIS 2 x AP44 Autopilot Controller

• 1 x Autopilot System for Inboard Engine

• Stilt steer helm,

• Fusion Apollo 770 head deck, 15 x 6.5 RGB speakers, 2 x 12” subwoofers, 2 x 2000w amps.

• All Fusion. Sionyx Night vision camera,

• Sky Link Sat Tv (Upgrade available extra cost)

Self driving options:

• Our boats are capable to self drive and dock (while monitored by captains at all times).

• We can also drive your boat (in the event of a safety requirement only) from the cloud servers we install into our boats and our Project managment teams anywhere in the world ...where there is an internet connection..can drive it to a safe port or achorage location.

• Upgrade costs to have the self driving capability is $300,000 usd per 44ft and 67 ft boat,

• Upgrade costs to have the self driving capability is $400,000 usd per 80ft and above size boats

• A monthly safety subscrition of $150 usd applies for project managers to monitor your boat at all times.

• In the event of a safety concern cloud driver required, this is a fixed fee to drive the boat per hour of $150 usd to the nearest port location.

Water storage:

• Tank 860L underfloor to port side with Zen 150 water maker standard

Front awning

• (Standard manual type) comes out from the hardtop & includes high strength  poles for stability. (50mm Carbon fibre poles upgrade available extra costs $1000 usd)

Tropicana hydraulic lowering aft side platform deck area wings, (1.5m wide each side)

• Are allocate to the both side deck areas of boat off side glass areas and create a large open side platform area that sees you have 14m wide across the internal width of the boat and are great for entertaining and water sports needs with a ladder access.

BBQ/Meal preparation areas

• In a variety of styles and colours 240v or solar power that runs the miele coffee machine and whatever else you  need,

• Lightweight bench tops, SS surround rail edging with built in RGB lighting.

• Twin SS sinks  induction cook top,

• 39 ltr recessed in ice box x2,

• 188 ltr twin tap Kegerator x 1,

• 30 kg Ice makers x 2

• recessed bin x2,

• 4 Cutlery draws x 2,

• 2 x SS 273 ltr fridge/ freezer,

• Storage cupboard. 3 x SS bar stools.

Upholstery package

• With personalized inbuilt name of the boat engraving into the trim on every seat area with comfortable modern contemporary designs and many under cushion storage areas

Storage lockers:

• Under all front and rear accessible/ free areas with a front waterproof covers are made to client specifications and needs)

Rooftop kayak/Paddle Board racks:

• Standard with rollers for easy mounting

Cloud/Internet/monitoring features:

• Your Boat is made YouTube live with GPS and Radar on tower standard and back to base cloud monitoring is a subscription extra cost per month.

Handrails:

• Stylish Powder coated handrails for safety and easy cleaning with a BBQ mounted here at owners desired location to rear aft deck area.

Flooring:

• High quality selections available throughout the boat to make easy cleaning a breeze after the day out…Standard is Sea deck or cork to rear aft deck and Synthetic Teak floors can fit as optional upgrade extra cost

• Internal is timber look floor finishes to the areas excluding bathrooms

Inside

Modern Luxury Interior

• Fitted Drink holders (10), phone  holders (4)

• Dining table: lowering ability in modern contemporary design with timber finish

• Control you boat by your phone using the Simrad feature (start turn off and on lights and also security features are included here for YouTube live subscriptions and service maintenance needs ask us about these  today!

• Sunroof with auto opening blinds/screens available standard

Exterior Features

• Out the back is a large seat area with a swinging backrest so you can face either way.

• The electric power raise swim platform between the sugar skoops has drop in ski skids for when you want to carry your ski with you. Without the ski, the bi fold platform makes it great to sit on or swim from as it’s lowered to be level with the water and as a lazarette foldin out step configuration platfrom built into the boat

• Up on the roof, each side fitted with SS grab rail for when traversing on the wide gunnel.

• Gunnel is protected with a polished SS rub rail.

• The massive and impressive radar tower is host to the black radio antennas, the Simrad dome, twin flush mount horns, LED navigation lights.

• Each side has extra seating for 4 (total 8 in front) with its own day table that lowers to make a day bed.

• Each seat has wireless phone chargers, and twin fender recesses.

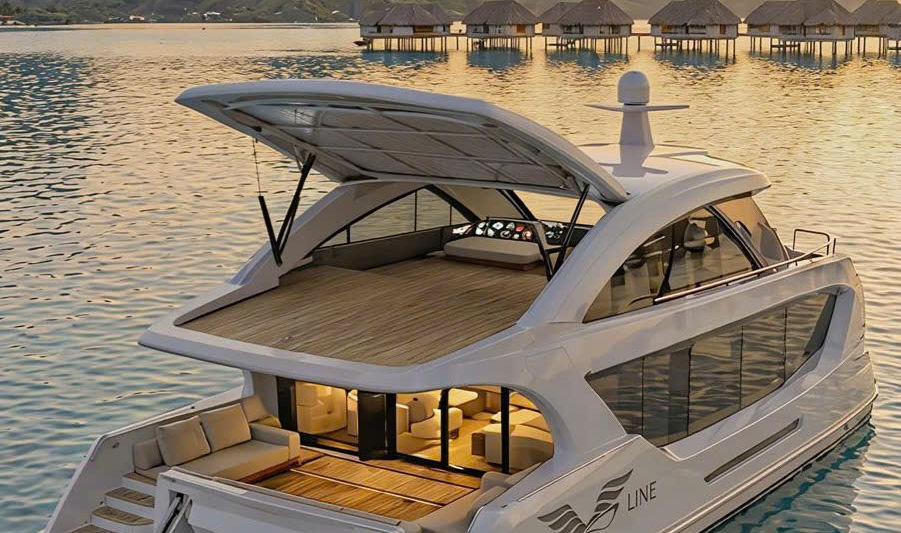

• The rear solar roof area opens up at the push of button te rear area to become a roof over an open rear aft deck area for sun bathing.

Modern contemporary design

• Dock Mate hand control for docking standard

• Water maker -150L per /hr ZEN brand Fitted standard

• Webasto continuous flow 50L x 1 off hot water heater ensures comfort during longer outings.

• Refueling station for jetski is standard

• Rear Rails: These 2” rails offer great protection and have a safety rope clips on between the rails that offers peace of mind with the rear rails have fitted bait cutting table and 4 rod holders on each. The port area has a marine grade Electric BBQ type.

Protection packages:

• Optional upgrades are available with removable covers at extra costs and can be made to order for the Front seats/table/rear seats as full covers for those hot days,

• Standard you have front awning allowed for with high strength poles and a rear fixed retractable awnings that folds away easily after use included.

• Privacy Re-trackable blinds on the side windows are standard .

Optional Upgrades available (extra costs) :

• Live bait tanks, Cool box for the fish, 4 x Carbon fibre poles,

• Satellite Tv (star Link) optional upgrades available to all boats,

• Roller set up for Kayaks easy lift on and of the boat-email us to find out more

• 1x Jet ski rails and removable type

• Jet ski refuelling station available

Radar Package:

• Combined Simrad Radar/Fish finder/Chart plotter/Gps all on the "24 inch" Touch Multi screens.. able to see gauges on screen for motors.

• Grey water tanks are included

• Walkway lighting standard to all our ranges

• Underwater lights are standard to all our boat ranges with Rear x 4 only allocated (blue colour) we do have (optional upgrades at extra costs are available to have the 4 underwater lights to each side if required let us know your needs on email in the contact us page)

Rear Awning

• 6ft retractable full width type able to withstand high winds as very strong and compact and also leave open while driving at below 8 knots..speeds..
